Electrophoresis kits

ELECTROPHORESIS APPARATUS

Code Number
Product description
Price (Rs.)

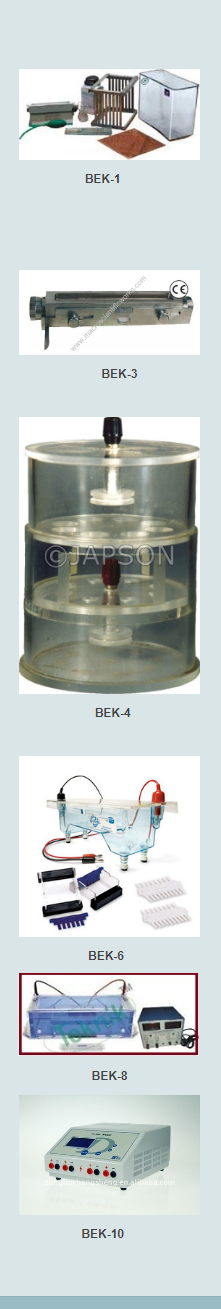

BEK-1 Biotech Thin Layer Chromatography Kit : This TLC kit is accurately and specially designed to give dependable service in drawing thin uniform layer variable from 0.2 mm complete with applicator. One fillergauge,Thin layer drawing board of perspex sheet for 4 plate of special size. Drying rack made of alluminium to hold 3 plates. Spotting guide,developing chamber acrylic chamber 5 glass plates square
size 20x20cm .uniform thickness .
Complete kit as above
6000
BEK -2Biotech TLC Kit Super Deluxe- as above but all parts export grade made of imported perspex acrylic sheet .Complete set.7500
BEK-3Biotech Spare Applicator
Heavy with measuring gauge
2000
BEK-4Biotech Disc GEL Electrophoresis - made of Imp.acrylic sheet .Circular disc is provided with arramgement for holding 12 Gel tubes with easily detachable upper buffer chamber fitted with electrodes4000
BEK-5 Same as above with Analouge power supply unit. 11000
BEK-5A -do- but with digital power supply for accurate constant and stablized current supply.15000
BEK-6Biotech Immuno Electrophoresis- for immuno
paper & thin electrophoresis.Supplied with micro- Immunological accessories which permit simultaneous study of eight standard AGar coated slides paper strip carrier.
4000
BEK-7Same as above with analouge
power supply.
11000
BEK- 7A----do---- same as above
|but digital power Supply
15000
BEK -8Biotech ELectrophoresis Apparatus (Paper model )
Sandon type :- Constructed of clear transparents imported perpex sheet 16" long x 9.5 wide x 4.25 high
( 140 x 23.75x 11.25 ) to hold four strip 12" long (3.75 x 30 cm )

The apparatus is complete with trouble free direct power supply to gain absolutely steady and smooth DC supply variable from 0 to 300
volts and 0-50 milliampere respectively. The unit is having a milliammeter and voltmeter ,polarity switch and connecting cable. Complete with power supply.
11000
BEK-9Biotech Electrophoresis apparatus- complete as above but with out power supply (Only tank) 4000
BEK-10Power supply for Electrophoresis - Details as above . 15000
BEK-11 Biotech Slab Gel Electrophoresis horizontal- Complete with glass tube comb platinum wire electrode and analouge power supply 0 to 300
volts at 50 MA.
11000
BEK-11A----do--- same as above
but with digital power supply.
15000
BEK-12Biotech Slab Gel Electrophoresis vertical - with comb and platinum wire electrode with analouge power supply 0 to 300 volts at 50 mA. 11000
BEK-12A---do--- same as above
but with digital power supply.
15000
BEK-13 Power supply for Constant voltage and stablized current .
A300 volts at 50 mA with 2 meters
Analytical/analog .
9000
B500 volts at 100 mA with 2 meters analytical/analog 11400
BEK-14 Digital Power supply
for accurate ,constant voltage &
stablized current
iDigital 300 volts at 50 mA. 13200
iiDigital 500 volts at 199 mA. 15600

BIOTECH RESEARCH ELECTROPHORESIS PHONETIC /ECTROPHORESIS APPARATUS FOR SAMPLE ANALYSIS

Code Number
Product description
Price (Rs.)

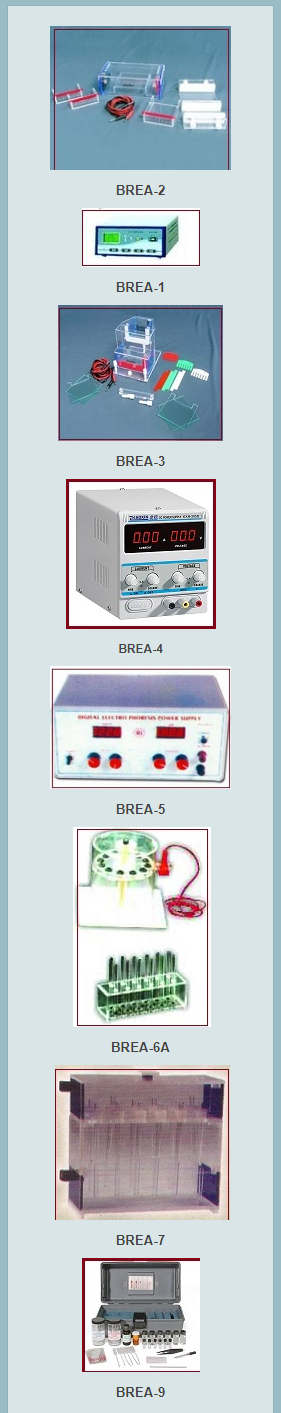

BREA-1Research Electrophoresis Apparatus - Paper strip model- for Reseacrh work with recessed safety interlock,switch which breaks the current to bath electrodes when cabinet cover in lifted .Complete
with electrophoresis cabinet made of perspex sheet and direct current power supply 300 volts and 100 milliamperes.Complete apparatus Biotech Model BEP- 600
15000
BREA-2Research Electrophoresis Bath for research work- With horizontal tank or vertical tank (any ) Leak proo chamber,made of clear transparent acrylic sheet. Suitable for horizontal electrophoresis accodated & paper strips of 4 cms ,width provided with platinum electrodes wire and connector. Biotech model BEP B- 250 7500
BREA-3Research SLab Gel vertical Electrophoresis Apparatus for research work made of clear acrylic shet leak proof, complete with glass plates, comb, platinum electrodes,wire & connector. Biotech model GV- 400. 7500
BREA-4Research Power supply DC stablized- 500 volts 100 mA, an inexpensive unit for electrophoresis work Output voltage is smoothy variable from 0-500 volts DC at 100 mA maximum for 220-230 volts A/C mains. (without electrophoresis tank) Biotech model BPS-400.15000
BREA-5Digital power supply for Electrophoresis 0-500 volts 100 mA.18000
BREA-6Research DIsc Electrophoresis apparatus - for research work-
AUpper and lower perxpex circular buffer chambers fitted withplatinum electrodes. Base of the upper bath is drilled with 12 holes in a circular bath fitted with rubber buffers into which 12 Gel tubes are kept in vertical position. It is assembly will electrophoresis upto 12" samples during single run. 7000
BReseacrh Immuno Electrophoresis -Same as BREA-6A but with stablized power supply unit,smoothly variable from 0-500 volts and 100 mA to work on 220 volts .Biotech Model BEP-50015000
CSame as above but with DIGITAL SUPPLY 18000
BREA-7 Research Immuno ELectrophoresis apparatus Research vertical Gel slab
migration apparatus designed
based on an imported pattern for immuno paper & thin layer electrophoresis ( w/o power supply).BTI Model BEP- 50.
7500
BREA-8Research immuno Electrophoresis with power supply- This power unit has been specially designed for our electrophoresis ( IMMUNO ) to deliver a ripple free. C.C. out put either at constant voltage or at constant current maximum voltage 500 volts at 100 mA. Equipped with voltmeter,milliammeter, voltage and current regulation regulation potentiometers. Polarity reversing switch,function selector switch,mains switch,pilot lamp and fuses for operation on 220 volts AC mains 50 c/s single phase.Biotech model BIEPS-800 15000
BREA-8ASame as above but with digital power supply. 18000
BREA-9Research Thin layer Chromatography kit for research work- A applicator filler gauge ,thin layer drawing board drying rack, spotting guide developing chamber micro pipette,glass plates.Biotech model BTLC-600 9500
BREA-10BREA-10, Research Innoculation chamber Tissue CUlture Hood with UV tube : made of perpex sheet smooth and scratch free interior surface, seamless and nicely curved corners with a sash(Horizontal swing door ) opening of 106 cms x 40 cms (frame ) fitted with transparent 4mm plexi glass on the front with inflorecent tube UV tube Biotech Model BTCH- 80013500
BREA-11Research Tissue culture Hood for ultra research : same as above but fitted with exhaust fan and duct and ultra violet tube Biotech model No BTCH- 1200. 16794
BREA-12Biotech Tissue CUlture Rack/ Cabinet- Metallic size 48"x21" - four shelves each having UV tube and inflorescent - tube ,filter with one exhaust fan- complete unit. 78000
BREA-12A -do- with time shelves 102000
BEPS-VM0001Protein Run- Vertical Page System

Salient Features

A) Ideal for high resolution separations

B) Run up to 2 gels simultaneously

C) Integrated gel casting ystem with casting base

D) Combs are height adjustable

Technical specifications

BEPS-VM0001

Model- Protein Run

Buffer Volume- 200+400ml

Gel Dimension- 10.0x8.0cm

Glass Dimension- 12.0x11.0

No of Wells- 10

Maximum samples- 20
30000
BEPS-VM0002Vertical Page Gel Electrophoresis

BEPS-VM0002

Model- Mini- SPL

Buffer Volume- 280ml

Gel Dimension- 10.0x8.0

Glass Dimension- 120x110

No. of Wells- 10

Maximum Samples- 10
11000
BEPS-V0003Technical Specifications

Model- Mini

Buffer Volume- 250ml

Gel Dimension- 8x7

Glass Plates Dimensions 10x10

No. of Wells 7

Maximum Samples 7
11000
BEPS-V0004Technical Specifications

Model- Midi

Buffer Volume- 300ml

Gel Dimension 16x14

Glass Plates Dimension- 18x18

No. of Wells 13

Maximum Samples 13
15000
BEPS-V0005Technical Specifications

Model- Mini Dual (Detachable Cooler)

Buffer Volume 500ml

Gel Dimension 2( 8 x 7 )

Glass Plates Dimension 10 x 10

No. of Wells 7

Maximum Samples 14
15000
BEPS-ECG001 EASY GEL CASTER

Standard Supply

Casting Cradle with Casting Clamp

Cam Keys (4nos), gel and silicon foam

User Guide

BEPS-ECG001

Model- Mini

Gel Dimension 8 x 7cm

Glass Plates dimension 10 x 10cm
7500
BEPS-ECG002 Model- Mini Dual

Gel Dimension- 8 x 7cm

Glass Plates Dimension 10 x 10cm
9000
BEPS-ECG003Model- Midi

Gel Dimension- 16 x 14cm

Glass Plates Dimension 18 x 18cm
14000
BEPS- BEQ005DNA Sequencer-

Salient Features

A) Anodized aluminum heat sink that provides uniform temperature control

B) Imported combs and spacers

C) Safety at high voltage
47000
SUBMARINE GEL ELECTROPHORESIS

Standard Supply

A) Buffer tank with safety lid

B) Electrodes (Positive & Negative)

C) Gel Running Trays and Combs

D) Power cord

E) user Guide

Technical Specifications
BEPS-S0001Model- Micro

Buffer Volume- 150ml

Gel Dimension- 7x4

No of Wells- 4 & 5

Qty of Combs- Each one

Maximum samples 5
7000
BEPS-S0002 Model- Mini

Buffer Volume- 300ml

Gel Dimension- 7x5 & 10x7

No of Wells- 8 & 3

Qty of Combs- Two + One

Maximum Samples- 16
9000
BEPS-S0003Model- Midi

Buffer Volume- 500ml

Gel Dimension- 7x5, 13x6 & 13x10

No of Wells 15 & 18

Qty of Combs Each Two

Maximum Samples 36
15000
WESTER BLOTTING (TRANSFER)

Standard Supply

A) Buffer tank with safety lid

B) Electrodes (Positive & Negative)

C) Gel Cassette (2 nos)

D) filter Pads, Cushion Pads and heat Exchanger (Optional)

Technical Specifications
BEPS-B0001Model- Midi

Buffewr Volume- 1000ml

Gel Cassette- 16 x 14cm
26500
ELECTROPHORESIS POWER SUPPLY

Standard Supply

A) The Outer cabinet is made of MS steel with powder coated

B) the LED blinking facility is incorporated for identification of working voltage

C) Suitable for all micro and mini model electrophoresis

Technical Specification
BEPS-PSS001Model- Sleek

Input Volt- 230 V,50 Hz

Output Volt- 50. 100, 150, 200 & 250V Dc

Max Current- 100mA

Output Terminals- One

Appropriate- Mini Electrophoresis System

In Appropriate- Blotting Systems
18500
BEPS-PSS002Model- Sleek Dual

Input Volt- 230 V, 50 Hz

Output Volt- 50, 100, 150, 200 & 250V Dc

Max Current- 200mA

Output Terminals- Two

Appropriate- Mini Electrophoresis System

In Appropriate- Blotting System
33000
POWER SUPPLY- SINO & MICRO PROCESSOR

Salient Features

A) Constant voltage or constant current modes with auto-balancing facility

B) SMD Technology for long and Reliable working

C) Automatic recovery to run after power failure

D) Overload/short- circuit protectio

E) Advanced digital cut off timer range with display

F) Single unit increments in timer settings

Technical Specfictions
BEPS-PS0001Model- PS TRIP

Input Volt- 230 V, 50Hz

Output Volt- 0-300 V

Max Current- 0-100mA

Power- 30 W

Timer- Yes

Display- LED

Output Terminals- Two
30000
BEPS-PS0002Model- PS MAX

Input Volt- 230 V, 50 Hz

Output Volt- 0-500 V

Max Current- 0-500mA

Power- 250 W

Timer- Yes

Display- LED

Output Terminals- Two
48000
UV TRANSILLUMINATORS

Salient Features-

A) Available with different range of wave lengths 254 nm, 312 nm and 365 nm

B) The high intensity imported UV tubes are used for high illumination

C) The imported UV Quartz filter for high end models

D) The cent percent UV resistant Polycorbonate shield for safety purpose

E) The Nylon hinges provided with shield and open it as long as it can

Technical Specifications
BEPS-T0001Model- VIS Trans

Input Volt- 230 V, 50Hz

Illumination Area- 24 x 14 cm

Cooling fan- Yes

Light source- 4 x 8 watts

Wavelength- ----
14500
BEPS-T0002Model- UV Sleek

Input Volt- 230 V, 50 Hz

Illumination Area- 15 x 15cm

Cooling Fan- Yes

Light Source- 4 x 6 watts

Wavelength- 365 nm

21000
BEPS-T0003Model- UV Academic

Input Volt- 230 V, 50 Hz

Illumination Area- 24 x 14 cm

Cooling Fan- Yes

Light Source- 4 x 8 watts

Wavelength- 365 nm
40000
BEPS-T0005Model- UV-Vis Academic

Input Volt- 230 v, 50 Hz

Illumination Area- 20 x 14 cm (UV) 20 X 14 CM (white)

Cooling Fan- Yes

Light Source- 4 x 8 watts (UV) 4 X 8 Watts (white)

Wavelength- 365 nm
45000
PCR WORK STATION AND HAND UV TORCH

Salient Features

A) High polished stainless steel working platform

B) Timer control for radiation (0-999mins)

C) UV resistant acrylic chamber and internal pipette stand

D) The moving wheels for easy repositioning
BEPS-PCR001Model PCR Basic

Chamber Size 1.5'x1.5'x2.5' (LXWXH)

Input Volt 230V, 50Hz

UV source 2x15 watts

visible source 2x8 watts

Wave Length 254nm

Timer
Yes
5200
BEPS-PCR002Model PCR Illuminium

Chamber Size 2'x2'x3' (LXWXH)

Input Volt 230V, 50Hz

UV Source 2x15 watts

visible source 2x8 watts´╗┐

Wave Length 254nm

´╗┐Timer Yes
62000
BEPS-H0003Model Hand UV Torch

Chamber Size -

Input Volt 230V, 50Hz

UV source 2x4 watts

Visible source -

Wave Length 365nm

Timer -
13500
GEL ROCKER

Salient features

A) The polished stainless steel platform and Digital cut-off timer (0-60mins)

B) Non slippery mat and the system can run continous without activating the timer

C) PMDC geared motor with noise free operation
BEPS-GR0001Model Mono-Timer

Input Volt 230V, 50Hz

timer 0-60 Mins

Platform Size 250 mm x 250 mm

Rocking Stokes 1 to 60
29775
BEPS-GR0002Model Mono

Input Volt 230V, 50Hz

Timer -

Platform Size 250 mm x 250 mm

Rocking Stokes 1 to 60
27000
BEPS-GR0003Model Twin-Timer

Input Volt 230V, 50Hz

Timer 0-60mins

Platform Size 250mm x 250mm

Rocking Stockes 1 to 60
35250
BEPS-GR0004Model Twin

Input Volt 230V, 50Hz

Timer 0-60mins

Platform Size 250mm x 250mm

Rocking Stokes 1 to 60
31500
BEPS-OS0001 Model Continous

Input Voltage 230V Ac, 50Hz

Speed 30 to 250 RPM

Timer -

Motion Orbital Motion

Platform 375mm x 355mm
77500
BEPS-OS0002Model Timer

Input Voltage 230V Ac, 50Hz

Speed 30 to 250 RPM

Timer 0-999 mins

Motion Orbital Motion Platform 375mm x 355mm
54800
VORTEX MIXER/HYBRIDIZATION OVEN
BEPS-HO0001Model HyBRIDO

Speed 10 to 100 RPM

Controller Digital Temperature PID Type

Temperature Above ambient to 70oC
86500
CENTRIFUGE
BEPS-MCF001Model Micro

Speed 10000 RPM

Controller Variable Regulated Speed

Timer 1 to 20 mins

Capacity 1.5ml/ 2ml x 6 tubes

Platform 410mm x 365mm
23620
BEPS-TTTCF002Model Table Top

Speed 10000 RPM

Controller Variable Regulated Speed

Timer 1 to 20 mins Continous Model

Capacity 1.5ml/2ml x 12tubes

Platform -
36800
BIO SAFETY CABINET
BEPS-BSC0001Type Class 1

Model BSC-CL1-LQ001

Size in Feet 2 x 2 x 2

MOC (INNER) SS

MOC (OUTER) MS
148750
ELECTROPHORESIS GEL APPARATUS
BEPS- VM0001 Product Protein Run-Vertical Page system molded

Unit Set
15200
BEPS-V0002 Product Mini-SPL Vertical Gel Apparatus

Unit Set
7000
BEPS-V0003 Product Mini Vertical Gel Apparatus

Unit Set
10200
EASY GEL CASTER-VERTICAL GEL APPARATUS
BEPS-EGC001Product Mini Easy Gel Caster

Unit Set
3500
BEPS-EGC002 Product Mini Dual Easy Gel Caster Unit Set 4800
BEPS-EGC003Product Midi Easy Gel Caster

Unit Set
7000

Leave a Comment

Your email address will not be published. Required fields are marked *

Open chat
Contact Us
